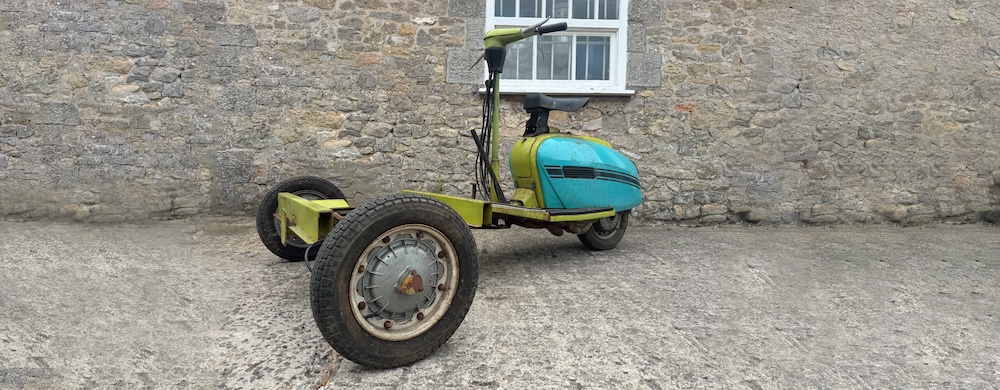

Tri Lambretta.
Technical Specification
| Model | Tri Lambretta |
| Production Started | January 1970 |
| Production Ended | September 1970 |
| Frame Prefix | Un Stamped |
| Engine Prefix | Unknown |
| Starting Frame N° | 001001 |
| Starting Engine N° | Unknown |
| Amount Produced | 760 |
| Engine | 150cc |
| Power & Rate | |
| Compression Ratio | |
| Head & Cylinder | Aluminium & Cast Iron |
| Engine Cooling | Forced Air |
| Crankcase Oil | SAE 90 0.6lt |
| Starter | Pedal |
| Clutch | Multiple discs in oil bath |
| Gears | 4 speed hand shifter |
| Gear Ratios | |
| Ignition | Magneto |
| Spark Advance | 18°-20° 2.20-2.66mm before TDC (top dead centre) mark on the flywheel |
| Point Settings | .35-.45mm |
| Sparkplug | Bosch 225, long thread |
| Primary | Chain |
| Secondary | N/A |
| Transmission Oil | N/A |
| Carburetor | dell'orto special SH2/22 |
| Carburation | Main 102, Pilot 48, valve 1 |
| Fuel Mix | 4.00% |
| Fuel Consumption | |
| Fuel Capacity | 8.1lt |
| Range | |
| Maximum Speed | |
| Brake Type | Front & Rear: Mechanically controlled drum |
| Tire | 3.50 x 10 |
| Tire Pressure | |
| Front | Oscillating arms with crosswise leaf springs |
| Rear | Torsion bar attached to the motor with a single shock absorber |
| Dry Weight | |
| Longitudinal Dimension | |
| Transversal Dimension | |
| Vertical Dimension Box | |
| Max Hight | |
| Ground Clearance | |
| Wheel Base | |
| Track Width | |
| Minimum Turning Radius | |
| Load Capacity | |
| System | |
| Frame | Use of both special and DL side panels |
| Cab | |
| Trunk Type | |
| Colours | |
| Steering | Handlebar * |
| Accelerator | Actuated by twisting of the right handlebar grip |
| Brakes | Foot pedal operates both front and rear combined |
| with a seperate lever on the right handlebar controling the rear independantly | |
| Clutch | Left lever on handlebar |
| Gears | Actuated by twisting of the left handlebar grip with clutch engaged |
| Trilambretta parts catalogue 178-7-1970 |
